The connector is SC or FC or LC or ST.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Optical fiber cable diameter : 3.0mm、3.5mm、4.5mm、5.0mm、5.5mm、6.0mm etc.
These patch cords are assembled by indoor or outdoor multi-core optical fibers and connectors. According to the optical cable structure, they are classified as
branch cable patch cord and bundled cable patch cord.

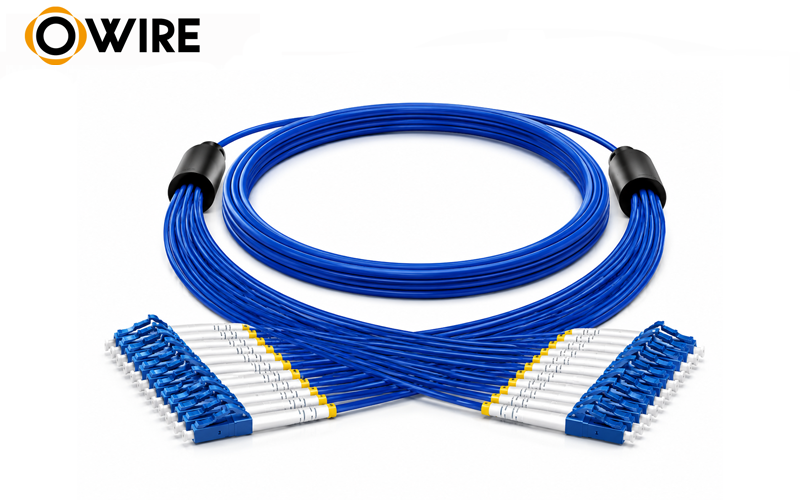

Multi-core Indoor & Outdoor Patch Cord
Product Overview
Our multi-core indoor & outdoor fiber patch cords are assembled with multi-core optical fiber cables and corresponding connectors, categorized into branch cable patch cords and bundled cable patch cords according to internal cable structure. Flexible configuration options make them ideal for high-density cabling projects for telecom operators, system integrators, smart building contractors, and network engineering wholesalers worldwide.
Customizable Basic Configurations
- Fiber Core Count: 4, 6, 8, 12, 24, 36, 48 cores available
- Cable Outer Diameter: 3.0mm, 3.5mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm
- Connector Types: SC, FC, LC, ST for selection
- Custom Length: Standard range 1~300m, customized length acceptable per client requirement
Core Product Advantages ✅
- International Standard Compliance
Fully meets IEC-61754 and YD/T1272 industry standards, with stable mechanical performance for long-term frequent plugging applications. - High-Density Layout Design
Compact multi-core integration saves cabinet and pipeline space, simplifies on-site wiring layout, and significantly improves construction & installation efficiency. - Robust Mechanical Tensile Performance
- Connector tensile strength: > 70N
- Branch pull strength: > 150N
- Wide Temperature Adaptability
Operating temperature range: -40℃ ~ +80℃, suitable for harsh indoor and outdoor deployment environments.
Connector End Face Geometric Parameters
| Connector Type | Radius of Curvature | Vertex Offset | Fiber Height | Angle |
|---|---|---|---|---|
| LC/UPC | 7–12mm | +50 / 0 nm | ±50μm | 0° |
| LC/APC | 5–12mm | +50 / 0 nm | ±50μm | 8±0.3° |
| SC/UPC | 10–25mm | +50 / 0 nm | ±50μm | 0° |
| SC/APC | 5–12mm | +50 / 0 nm | ±50μm | 8±0.3° |
Optical Performance Specifications
| Test Item | Classification | Standard Index | Test Standard Reference |
|---|---|---|---|
| Insertion Loss | — | < 0.30dB | IEC61300-3-34 |
| Return Loss | Single Mode (UPC) | ≥ 50dB | IEC61300-3-6 |
| Single Mode (APC) | ≥ 60dB | IEC61300-3-6 | |
| Multi Mode | ≥ 35dB | IEC61300-3-6 | |
| Suggested Length | — | 1~300m or customized length | — |
Typical Application Scenarios
- FTTH (Fiber to the Home) access network deployment
- Smart building & intelligent community structured optical cabling
- Campus backbone network construction
- LAN (Local Area Network) system interconnection
- Outdoor cross-area fiber trunk connection & indoor cabinet high-density jumper wiring
- Telecom distribution box, optical cross cabinet, and central office wiring projects
B2B Customization & Wholesale Support
We provide comprehensive OEM & ODM service for global bulk buyers, distributors, and engineering contractors:
- Custom fiber count, cable length, outer jacket material (PVC / LSZH) and color
- Custom connector combination, end-face polishing mode (UPC/APC)
- Private logo printing, customized packaging scheme, batch inspection test reports
- Factory direct competitive bulk pricing, stable lead time, professional pre-sales technical consulting for solution matching
- Strict finished product testing to guarantee consistent optical and mechanical performance
Why Select Our Multi-Core Indoor & Outdoor Patch Cord?
🔹 Standardized production complying with global mainstream fiber cabling specifications
🔹 Low insertion loss & high return loss to ensure stable long-distance signal transmission
🔹 Excellent tensile resistance & wide temperature tolerance for indoor & outdoor dual-use scenarios
🔹 High-density design cuts overall cabling material and labor cost for engineering projects
🔹 Full-range configurable options to match diversified project requirements
🔹 One-stop customization & reliable after-sales technical support for bulk orders
Do you need a concise headline + bullet-point version for the top product page block, or an SEO meta description for your independent site listing?
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
