Cat8 Shielded Patch Cord 40Gbps | Tool-Free RJ45 Network Cable
Using environmentally friendly materials, 100% testing, quality assurance
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
PCB adopts optimized compensation design scheme with higher margin index
Round Cable：28~24 AWG Stranded Copper
Flat Cable：32~26 AWG Stranded Copper
Cat.8 Shield Network Patch Cord Series (Model: PIS9000)
Product Overview
Our Cat8 shielded patch cord series (Model PIS9000) includes two mature structured cabling solutions: tool-free PCB compensated shielded patch cord and conventional injection-molded shielded patch cord. Fully compliant with global Cat8 cabling standards, these high-performance jumpers are engineered for 25G/40G high-speed transmission, ideal for data center backbone interconnection, enterprise high-density cabinet wiring, industrial anti-interference networking, and premium low-latency gaming & AV system deployment.
Two Product Types & Core Advantages

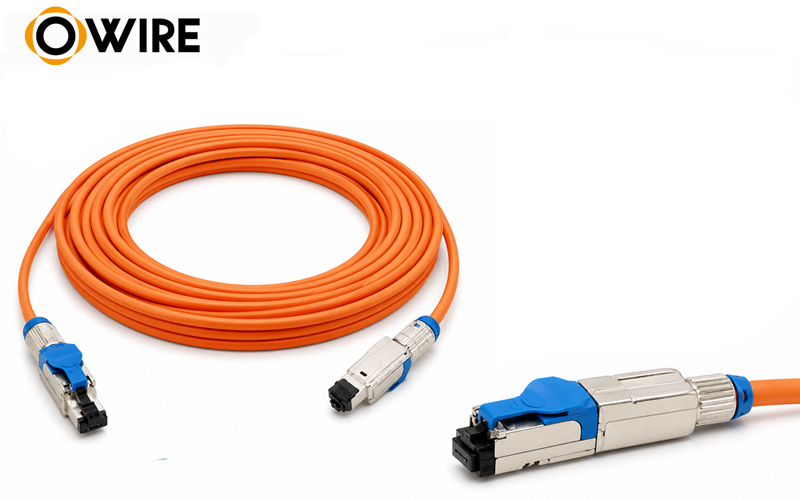

Type 1: Tool-Free Cat.8 Shield Patch Cord
✅ Advanced PCB optimized compensation design, with superior performance margin to stabilize high-frequency signal transmission
✅ Tool-free field termination design; 360° full-shield shell with reliable grounding to suppress EMI & crosstalk
✅ Eco-friendly raw material formulation, 100% full electrical testing before shipment for consistent quality control
Specification
24~22 AWG solid copper round cable

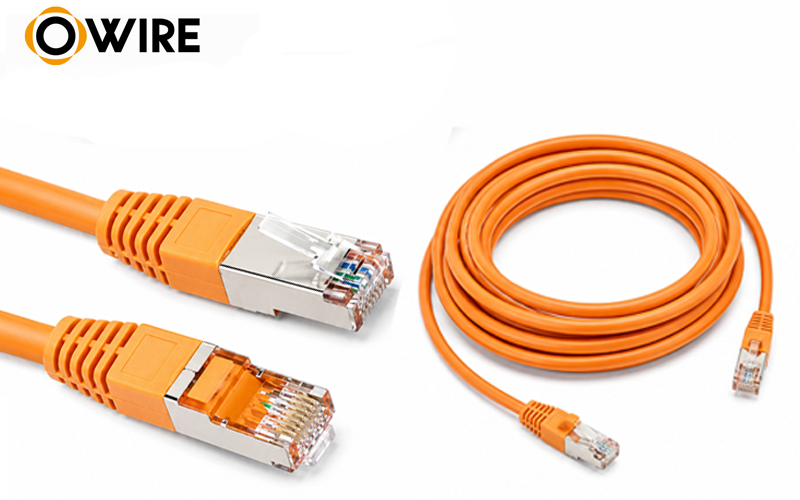

Type 2: Conventional Injection Molded Cat.8 Shield Patch Cord
✅ High-purity PC crystal head + 360° full-shield housing with reliable grounding for strong anti-electromagnetic interference performance
✅ Gradual integrated injection molding structure, enhancing pull resistance and preventing internal wire breakage & connection failure
✅ Environmentally safe materials adopted, 100% finished product testing to guarantee stable transmission performance
Specification
- Round Cable: 28~24 AWG stranded copper
- Flat Cable: 32~26 AWG stranded copper
Compliance Standards
Conforms to international authoritative cabling specifications:
TIA-568.2-D | ISO/IEC 11801-1 | IEC 60603-7
Raw Material Configuration
| Component | Material Details |
|---|---|
| Registered Jack (Crystal Head) | PC or ABS+PC composite material |
| Contact Needle (PIN Pin) | Phosphor Bronze, 50U” gold-plated plating for anti-oxidation & stable contact |
| Outer Sheath Material | PVC or LSZH (Low Smoke Zero Halogen, optional for fire-safe projects) |
Physical Performance Parameters
| Physical Item | Technical Index |
|---|---|
| Connect-Disconnect Lifespan | ≥ 2500 insertion & extraction cycles |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Relative Humidity Range | 10% ~ 90% |
Electrical Performance Parameters
| Electrical Item | Technical Index |
|---|---|
| Insulation Resistance | ≥ 500MΩ |
| Withstand Voltage | 1000 VDC |
| Contact Resistance | ≤ 20mΩ |
Key Application Scenarios
- Data center 25G/40G high-speed backbone, switch-to-server short-range interconnection
- Enterprise high-density cabinet structured cabling, IDC colocation projects
- Industrial automation, equipment room wiring with severe electromagnetic interference
- Low-latency professional gaming, 8K video production, high-speed NAS storage networking
- Smart building, hospital, government institutional high-grade network engineering tender projects
B2B Wholesale & Customization Support
We provide flexible OEM & ODM service for global distributors, system integrators, engineering contractors and bulk purchasers:
- Custom cable length, jacket color, PVC/LSZH sheath material selection
- Customized packaging, private logo printing, brand labeling solution
- Bulk order competitive factory direct pricing, stable production lead time
- Pre-sales technical matching guidance, batch test reports & third-party inspection support
- Strict full-production testing process to guarantee Cat8 standardized transmission performance
Why Select Our PIS9000 Cat8 Shielded Patch Cord?
🔹 Dual product design options (tool-free / injection molded) to match different construction & project budget demands
🔹 360° full shielding structure effectively eliminates crosstalk & external electromagnetic interference
🔹 Gold-plated contact pins extend service life and reduce contact resistance for long-term stable signal transmission
🔹 Exceeds official Cat8 performance requirements to support reliable 40G high-bandwidth transmission
🔹 Compliant with global mainstream cabling standards for international project acceptance
🔹 Complete quality inspection system + customizable service to meet bulk wholesale and engineering tender requirements
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
