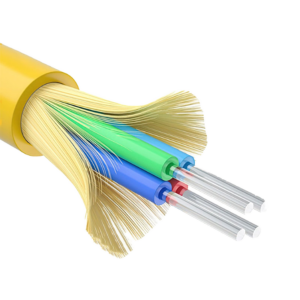

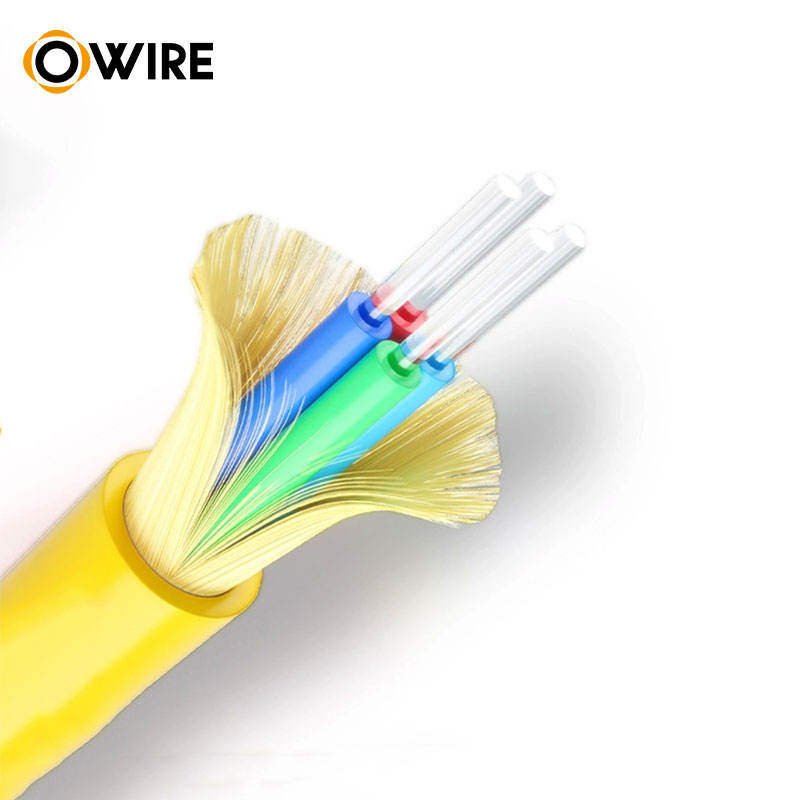

OWIRE Indoor Optical Cable Anti-Rodent Glass Yarn Protection SC UPC Connector TCP Network for Agricultural Monitoring System
Ensure the reliability of your agricultural monitoring systems with the OWIRE Indoor Anti-Rodent Optical Cable. Engineered to withstand harsh environments, this cable features a specialized Glass Yarn protection layer that physically prevents rodent damage—a common issue in agricultural and rural deployments.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
OWIRE Indoor Anti-Rodent Fiber Optic Cable – SC UPC Duplex, TCP Network Grade, Glass Yarn Protection for Agricultural Monitoring
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
| Key Attributes | Details |
|---|---|
| Type | Indoor Optical Cable |
| Connector Type | SC UPC |
| Use | Indoor |
| Network | TCP |
| Model Number | GJBFJH/V |
| Brand Name | OWIRE |
| Place of Origin | Guangdong, China |
| Model | Duplex Optical Fiber Cable |
| Cable Diameter | 1.6 ± 0.1 X 3.2 ± 0.2 – 3.0 ± 0.1 X 6.0 ± 0.2 |
| Cable Weight | 4.6/4.8 – 13.0/13.6 |
| Tensile Strength | 60/120N – 120/225N |
| Crush Resistance | 100/500 (N/100mm) |
| Bending Radius | 10H / 20H |
| Operating Temp | -20°C ~ +60°C |
| Installation Temp | -5°C ~ +50°C |
| Sheath Material | PVC + LSZH |
| Applications | Indoor riser & plenum level |
| Fiber Count | Outside OD(mm) | Tight Buffer OD(mm) | Weightkg/km | Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius(mm) | |||
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D |
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?

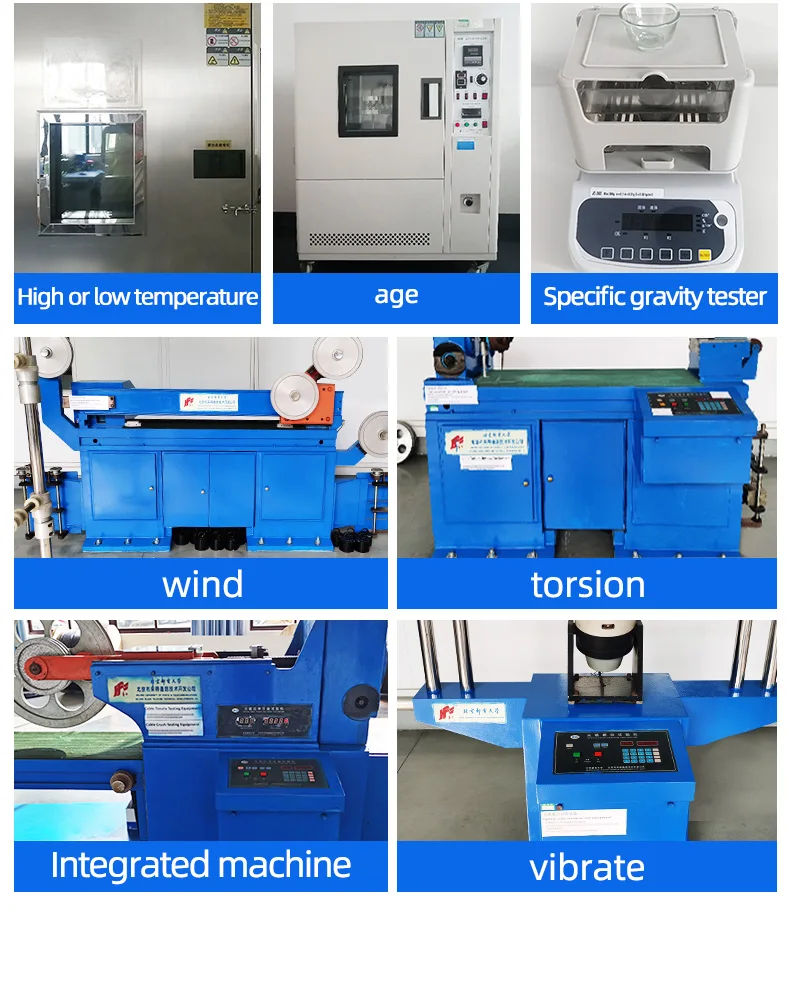

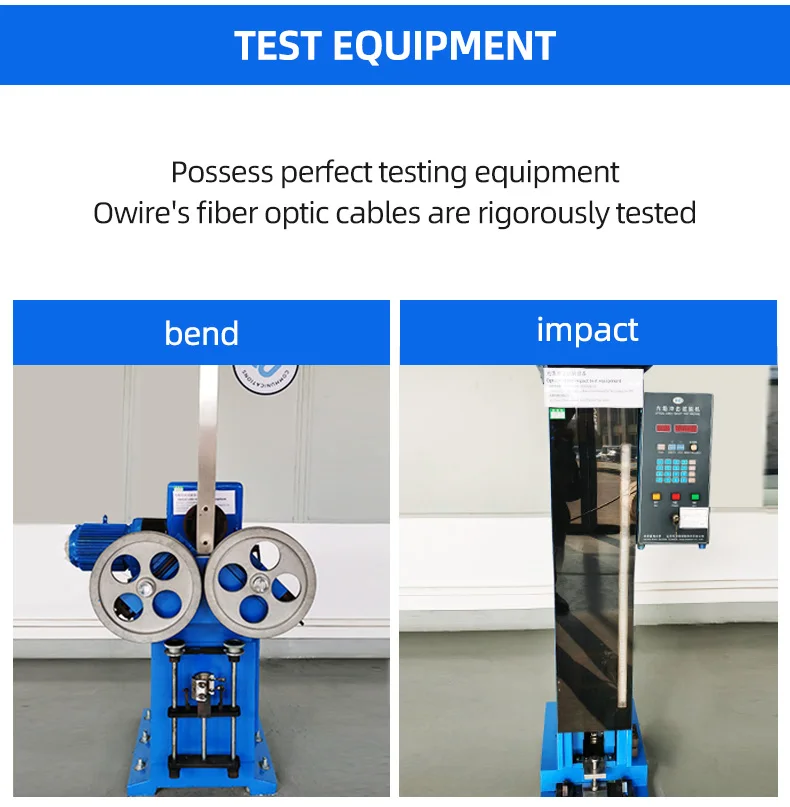

Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
