ANSI/TIA 568.2-D
ISO/IEC 11801
YD/T 1019
UL Certified
Bulk Cat5e SF/UTP Outdoor LAN Cable | Double Jacket Shielded Ethernet Cable Factory
The outdoor double sheath cable adopts PE waterproof outer sheath and PVC inner sheath, which has excellent waterproof performance and can be used in
outdoor environments such as short time of water and long time of sunlight and ultraviolet irradiation.
Product Features
Conductor Dc Resistance
93.8 Ω/km
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
100MHz bandwidth is provided at a distance of 90 meters, with a typical application rate of 100Mbps，Up to 2.5GBASE-T is supported.
Compared with the single shield cable, the shielding effect is better, and it has stronger anti-electromagnetic interference ability, which is suitable for the occasion
of strong external electromagnetic interference

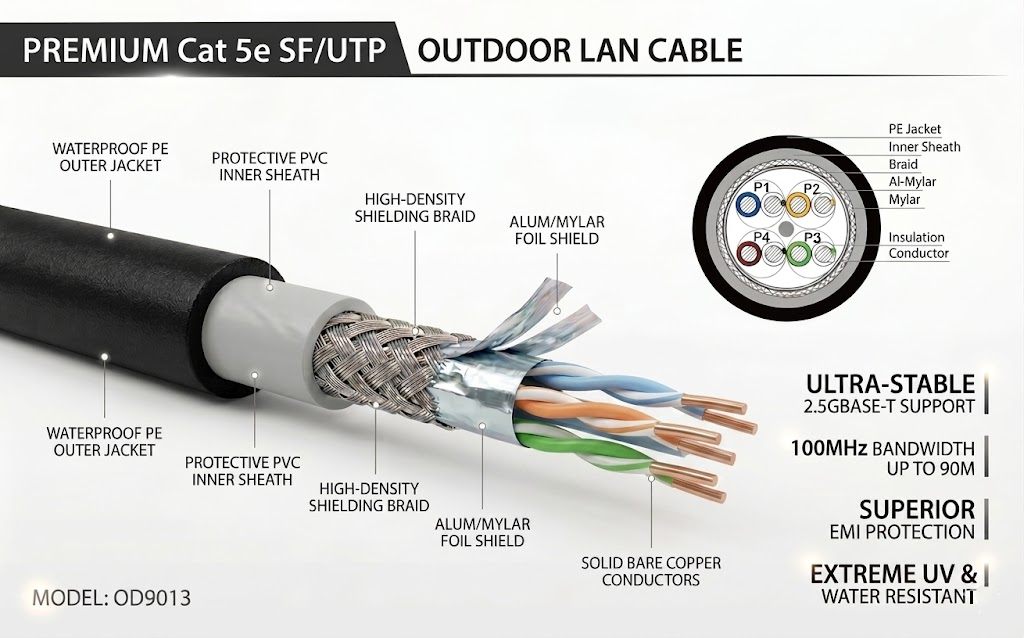

The OD9013 Cat5e SF/UTP Outdoor LAN Cable is engineered specifically for harsh outdoor environments, high-interference industrial setups, and long-distance base station wiring. Unlike standard network cables, this bulk ethernet cable features an advanced SF/UTP double-shielding architecture (Overall Braid + Al-Mylar Foil) to eliminate electromagnetic interference (EMI) and crosstalk completely.
With a robust double-jacket design (Waterproof PE Outer Sheath + Flexible PVC Inner Sheath), it provides superior resistance against UV radiation, moisture, and extreme temperature fluctuations, ensuring a stable 2.5GBASE-T network performance over its lifespan.
Key Features & B2B Advantages
- High-Speed & Multi-Gigabit Ready: Delivers 100MHz bandwidth up to 90 meters, typically supporting 100Mbps speeds while fully capable of scaling up to 2.5GBASE-T application rates for modern networking demands.
- Superior SF/UTP Double Shielding: Combining an overall aluminum foil shield with a high-density braided screen, this cable provides maximum EMI protection, making it ideal for overhead laying near power lines or high-density industrial zones.
- Heavy-Duty Weatherproof Double Jacket: The outer PE (Polyethylene) layer shields against heavy rain, short-term water immersion, and long-term UV/sunlight exposure. The inner PVC sheath adds structural integrity and simplifies termination.
- 100% Pure Oxygen-Free Copper (OFC): Built with solid 24AWG pure copper conductors to ensure minimum signal attenuation, optimal conductivity, and full compatibility with PoE/PoE+ applications compared to cheap CCA alternatives.
- International Standards Compliance: Manufactured and fully compliant with international structural and safety standards including ANSI/TIA 568.2-D, ISO/IEC 11801, YD-T1019, and UL444.
Technical Specifications
Typical Structure Parameters
| Component / Feature | Technical Specifications |
| Model Number | OD9013 |
| Conductor Material | 99.99% Solid Bare Oxygen-Free Copper (OFC) |
| Conductor Diameter | 24 AWG |
| Insulation Material | HDPE (High-Density Polyethylene) |
| Insulation Diameter | 1.0 ± 0.05 mm |
| Shielding Type | SF/UTP (Overall Braid + Aluminum Foil Mylar Shield) |
| Inner Sheath Material | PVC (Polyvinyl Chloride) |
| Outer Sheath Material | Waterproof & UV-Resistant PE (Polyethylene) |
| Finished Outside Diameter | 7.50 mm |
| Jacket Color | Black (Custom colors available upon bulk request) |
| Internal Structure Components | Rip-cord included for easy jacket stripping |
Mechanical & Electrical Performance
| Performance Metric | Rated Value |
| Conductor DC Resistance | ≤ 93.8 Ω/km |
| Dielectric Strength (Conductor to Conductor) | 1.5KV AC for a minimum of 2 seconds (Without breakdown) |
| DC Resistance Unbalance (Inside Pairs) | ≤ 5% |
| Mutual Capacitance | ≤ 5.6 nF/100m |
Installation & Packaging Guidelines
Environmental & Physical Limitations
- Operating Temperature Range: -10°C to 60°C (Ideal for extreme seasonal climates)
- Construction/Installation Temperature: 0°C to 40°C
- Recommended Bending Radius: ≥ 8 × Outside Diameter (OD) during laying
- Maximum Laying Tension: ≤ 110N (Short-term) / ≤ 20N (Long-term)
Packaging Options
- Standard Wholesale Packing: Available in standard 305m (1000ft) wooden reels, plastic reels, or pull-boxes.
- OEM/ODM Customization: Packaging layout, shipping marks, palletization, and outer jacket printing can be fully customized according to project specifications or brand identity.
Get a Wholesale Quote & Free Sample Details
As a leading network cable manufacturer, we support global B2B buyers, system integrators, and telecommunication engineering firms with factory-direct pricing, certified quality assurance, and flexible production capacities.
Looking for a reliable OEM/ODM partner for your next infrastructure project?
Contact our engineering sales team today to request full PDF datasheets, Fluke test reports, or a Free Physical Sample for your laboratory evaluation.
- Inquiry Response Time: Guaranteed within 2 business hours.
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
