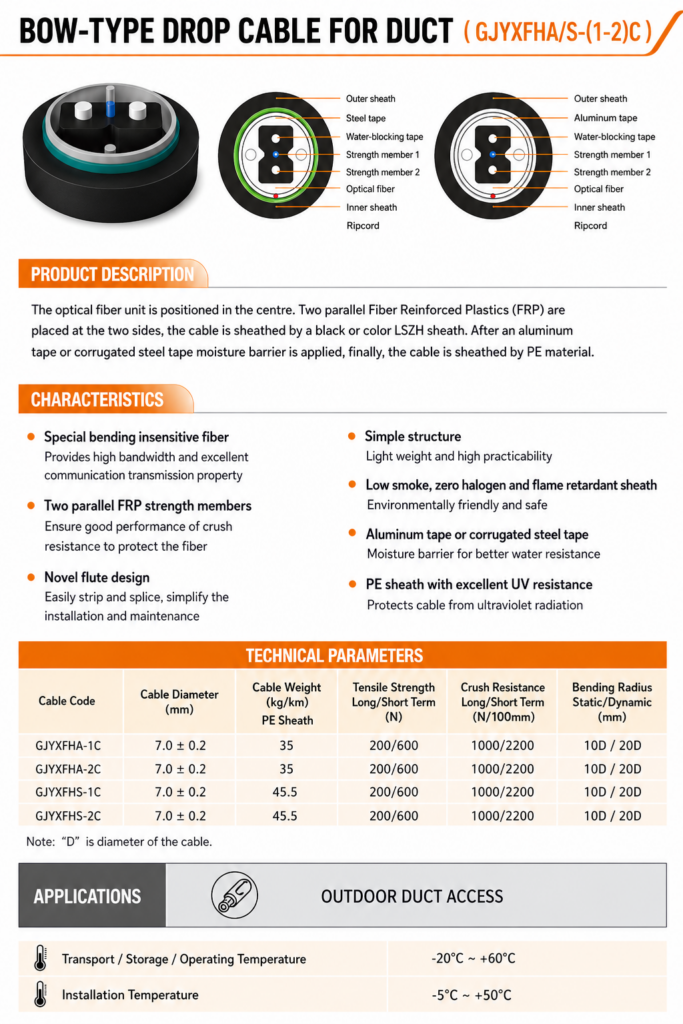

Outdoor Duct Bow-type Drop Cable – Steel Tape Armored

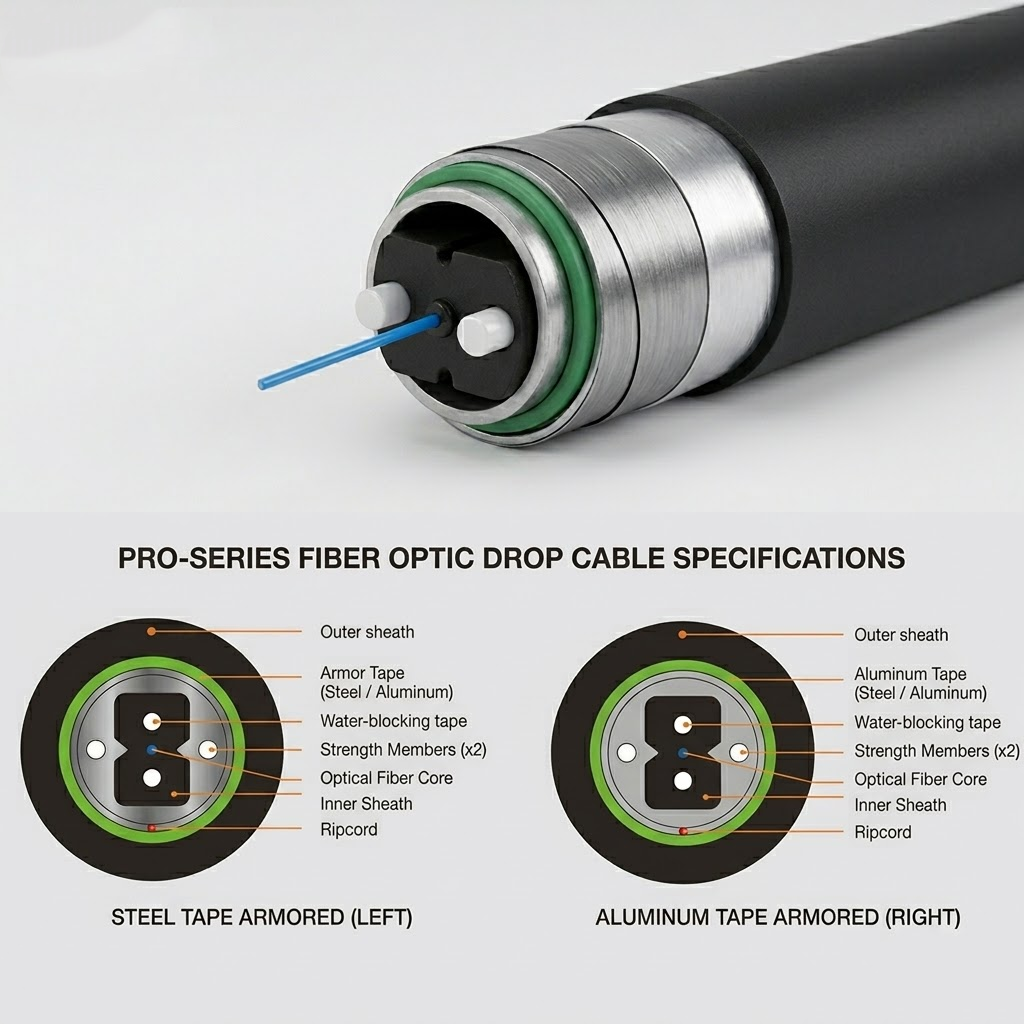

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP)are placed at the two sides,the cable is sheathed by a black or color LSZH
sheath. After an aluminum tape or corrugated steel tape moisture barrier is applied,Finally,the cable is sheathed by PE material..
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Outdoor duct access
Special bending-resistant fiber delivers higher bandwidth and superior network transmission performance.

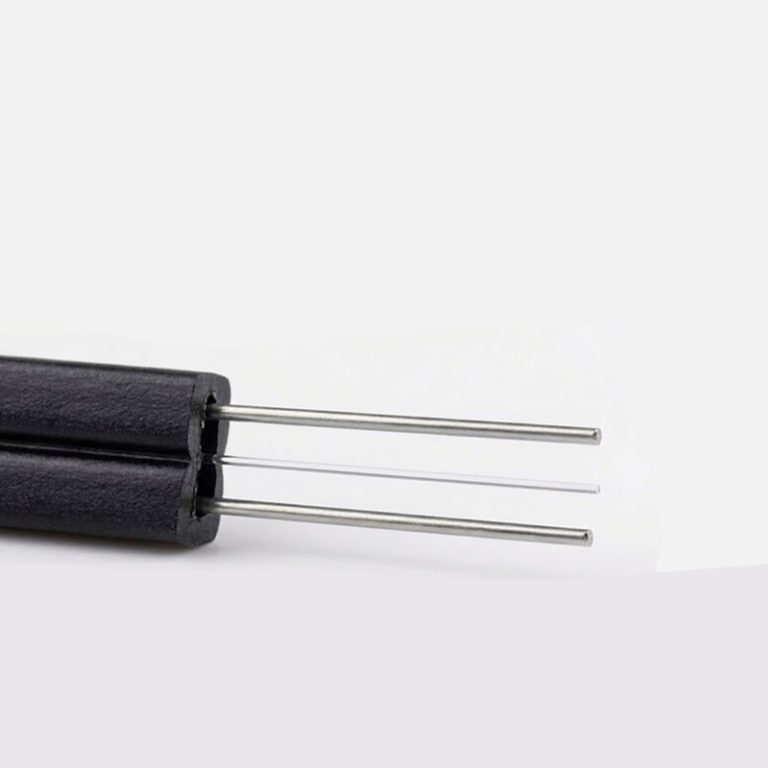

Two parallel FRP strength members endow the optical cable with excellent compression resistance to protect internal fibers.
Low-smoke zero-halogen flame-retardant polyolefin sheath, eco-friendly and low-carbon.
Laminated aluminum tape or laminated steel tape moisture barrier available.
The optical cable features simple structure, light weight and high practicality.
Unique groove design for easy stripping and splicing, simplifying installation and maintenance.
PE outer sheath offers outstanding UV resistance.
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
| Cable Code | Cable Diameter (mm) | Cable Weight (kg/km)PE Sheath | Tensile Strength (N)Long/Short Term | Crush Resistance (N/100mm)Long/Short Term | Bending Radius (mm)Static/Dynamic |
|---|---|---|---|---|---|
| GJYXFHA-1C | 7.0 ± 0.2 | 35 | 200 / 600 | 1000 / 2200 | 10D / 20D |
| GJYXFHA-2C | 7.0 ± 0.2 | 35 | 200 / 600 | 1000 / 2200 | 10D / 20D |
| GJYXFHS-1C | 7.0 ± 0.2 | 45.5 | 200 / 600 | 1000 / 2200 | 10D / 20D |
| GJYXFHS-2C | 7.0 ± 0.2 | 45.5 | 200 / 600 | 1000 / 2200 | 10D / 20D |
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
