Non-metallic Fiber Optic Cable – Anti-electromagnetic | Factory Supply
The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A Fiber Reinforced
Plastic (FRP)locates in the center of core as a non-metallic strength member.The tubes and possible fillers are stranded around the strength member into a
compact and circular core.After the cable core is filled with the filling compound to protect it from water ingress,the cable is sheathed by PE material.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Duct,Non-self supporting aerial,Long-distance communication, inter office communication; especially applicable for electric power system, thunder and lightning and electromagnetic interference stricken area.
GYFTY Stranded Loose Tube All-Dielectric Non-Armored Fiber Optic Cable (2-288 Cores)
Lightning-Proof & EMI Resistant: The Ultimate All-Dielectric Solution
The GYFTY Fiber Optic Cable is specifically engineered for high-performance data transmission in environments where electrical interference or lightning strikes are a major concern. By utilizing a Fiber Reinforced Plastic (FRP) central strength member and a completely non-metallic construction, this cable ensures your network remains safe and stable, even when installed near high-voltage power lines or in lightning-prone areas.
Key Features & Benefits
- 100% All-Dielectric Design: With zero metal components, there is no risk of lightning induction or electromagnetic interference (EMI). It is the safest choice for power system communication and regions with frequent thunderstorms.
- Superior Moisture Protection: $250 \mu m$ fibers are housed within high-modulus plastic loose tubes filled with water-resistant jelly. The entire cable core is further packed with filling compounds to block water ingress and maintain signal integrity.
- High-Strength FRP Member: The non-metallic central strength member provides excellent tensile strength without the conductivity of steel, ensuring the cable can withstand significant pulling forces during installation.
- Weather-Resistant PE Jacket: Encased in a rugged Polyethylene (PE) outer sheath that is UV-resistant and built to thrive in extreme temperatures ranging from $-40^\circ C$ to $+70^\circ C$.
- Optimized Flexibility: The stranded loose tube design creates a compact, circular profile, making it highly manageable for duct laying and non-self-supporting aerial deployments.
Technical Specifications
| Specification | Value / Detail |
| Fiber Count Range | 2 – 288 Cores |
| Fiber Diameter | $250 \mu m$ |
| Central Strength Member | Non-metallic Fiber Reinforced Plastic (FRP) |
| Tensile Performance | Up to 1000N (Long-term) / 3000N (Short-term) |
| Crush Resistance | 300N/100mm (Long-term) / 1000N/100mm (Short-term) |
| Min. Bending Radius | Static: 12.5D / Dynamic: 20D |
| Operating Temperature | $-40^\circ C$ to $+70^\circ C$ |
| Installation Temperature | $-20^\circ C$ to $+60^\circ C$ |
Professional Applications
- Power System Networks: Safely deploy fiber alongside power distribution lines or in high-voltage substations without electrical hazards.
- Lightning-Prone Regions: Ideal for outdoor installations where metallic-armored cables would pose a surge or strike risk.
- High EMI Environments: Perfect for industrial sites, railway signaling, or server farms where electromagnetic noise is prevalent.
- Duct & Aerial Installation: Highly suitable for underground conduit systems and non-self-supporting aerial configurations.

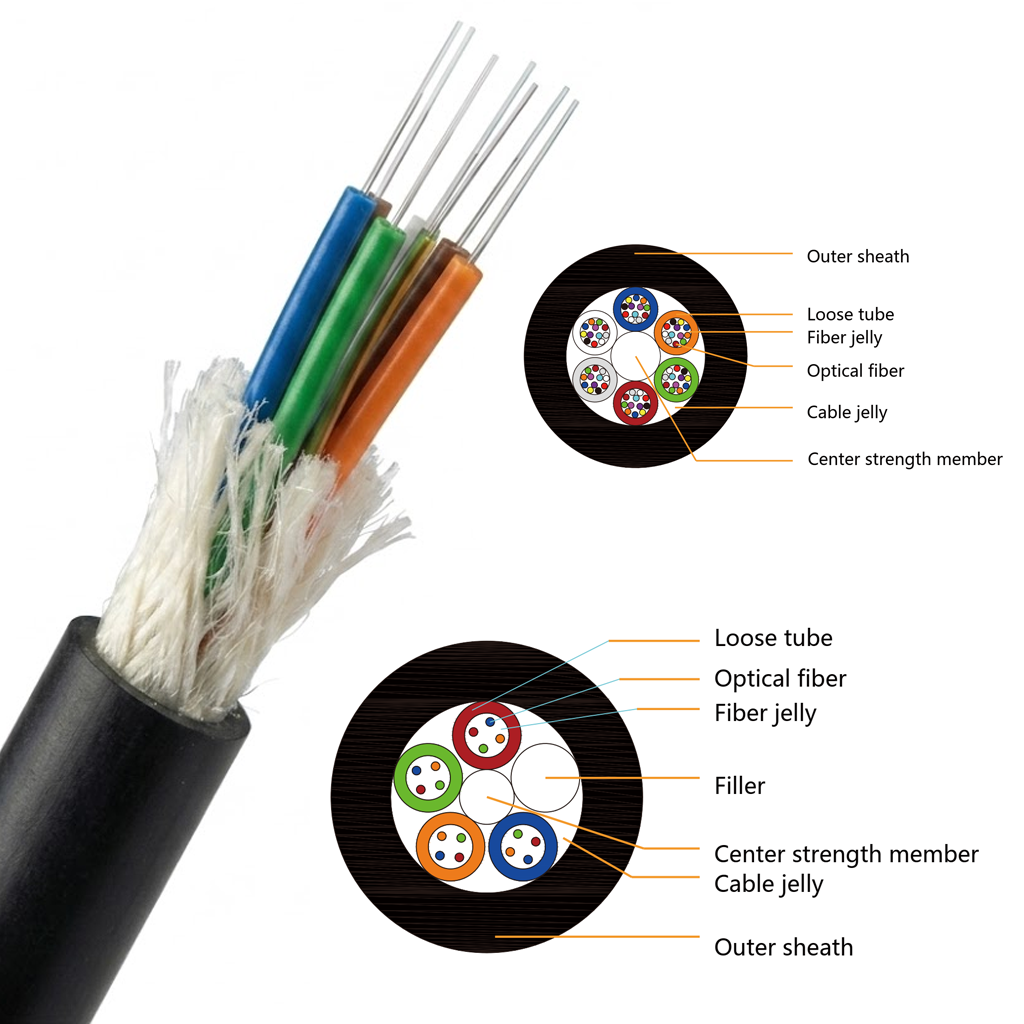

Anatomy of the GYFTY Cable
- Outer Sheath: High-density PE for environmental protection.
- Loose Tube: Protects the fibers from mechanical stress.
- Optical Fibers: High-clarity $250 \mu m$ cores.
- Filling Compound: Multi-layer water-blocking jelly.
- FRP Core: The non-metallic backbone for tension and lightning safety.
Pro Tip: “D” represents the cable’s outer diameter. For long-term reliability, ensure the minimum bending radius is strictly followed during the installation process.
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
