Easy-Strip Duplex Fiber Cable | High Tensile Strength

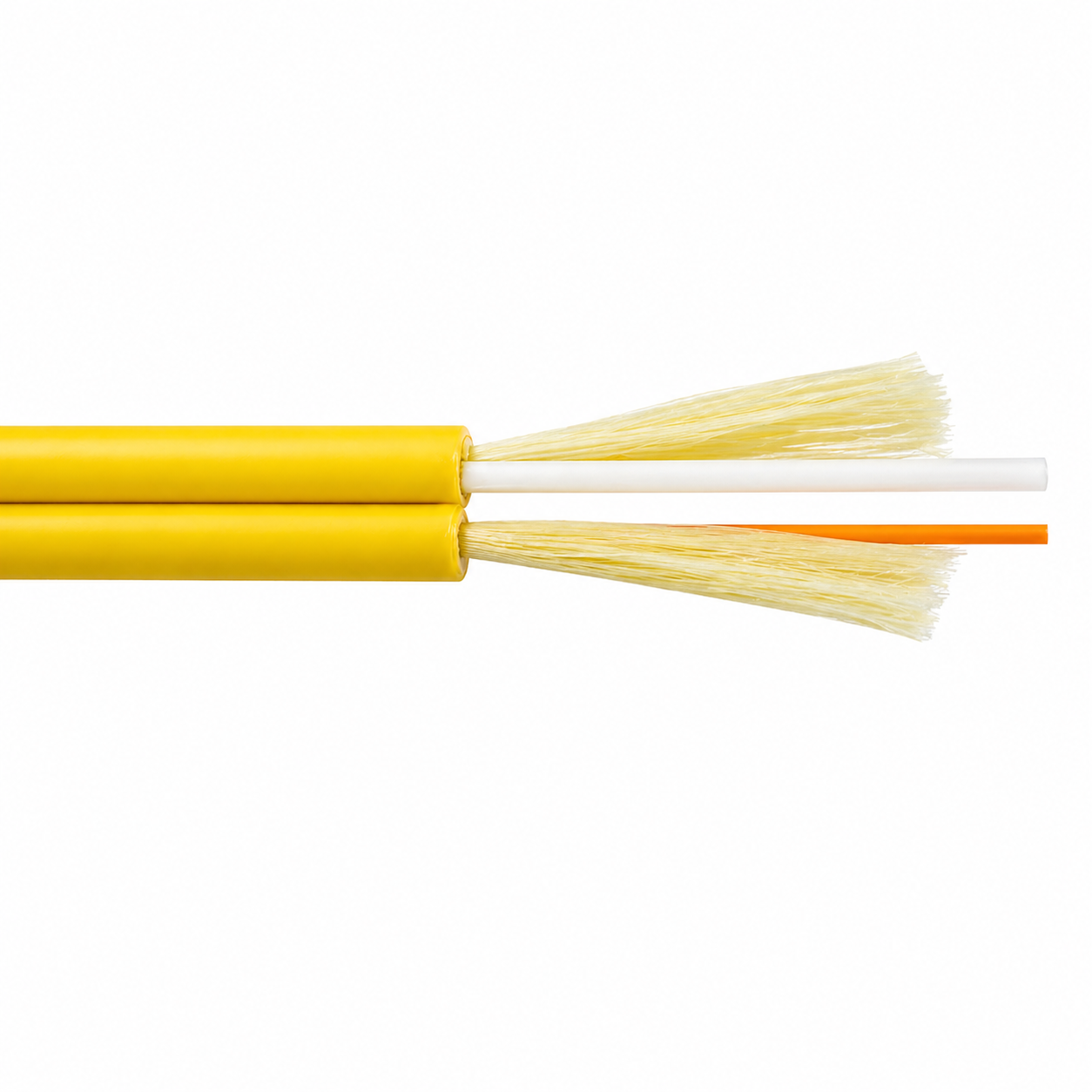

Duplex optical fiber cable（DXC）use φ900μm or 600μm tight buffer fiber as optical unit,the tight buffer fiber wrapped with a layer of aramid yarn as strength
member,and the cable is sheathed by a figure 8 PVC or LSZH(Low smoke, Zero halogen,Flame-retardant)material.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Tight buffer fiber easy of stripping
Aramid yarn as strength member make cable have excellent tensile strength
Figure 8 structure sheath facilitate embranchment
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.

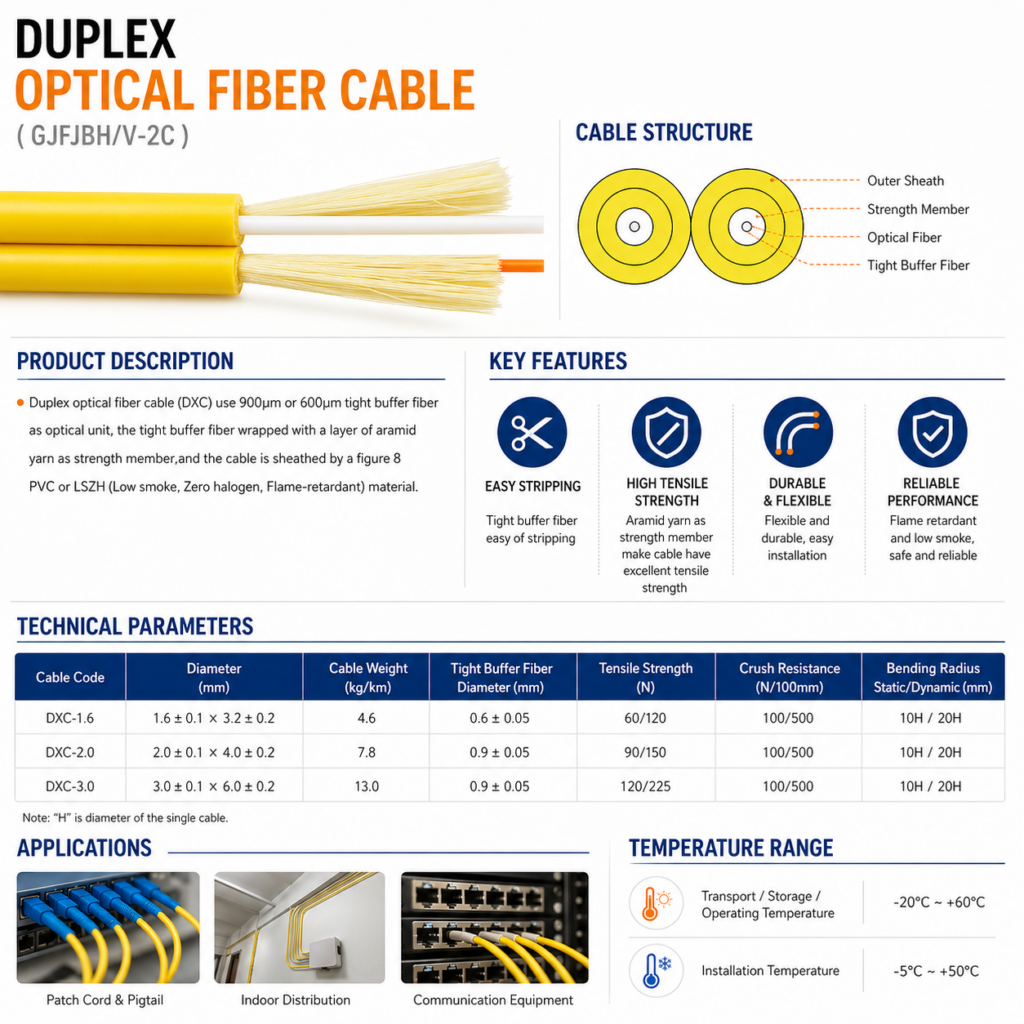

Technical Specs
Technical Specifications
| Cable Code | Cable Diameter (mm) | Cable Weight (kg/km) – PVC Sheath | Cable Weight (kg/km) – LSZH Sheath | TBF Diameter (mm) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|---|
| DXC-1.6 | 1.6 ± 0.1 × 3.2 ± 0.2 | 4.6 | 4.8 | 0.6 ± 0.05 | 60/120 | 100/500 | 10H / 20H |
| DXC-2.0 | 2.0 ± 0.1 × 4.0 ± 0.2 | 7.8 | 8.0 | 0.9 ± 0.05 | 90/150 | 100/500 | 10H / 20H |
| DXC-3.0 | 3.0 ± 0.1 × 6.0 ± 0.2 | 13.0 | 13.6 | 0.9 ± 0.05 | 120/225 | 100/500 | 10H / 20H |
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
