Stranded Loose Tube Armored Fiber Optic Cable – Direct Buried

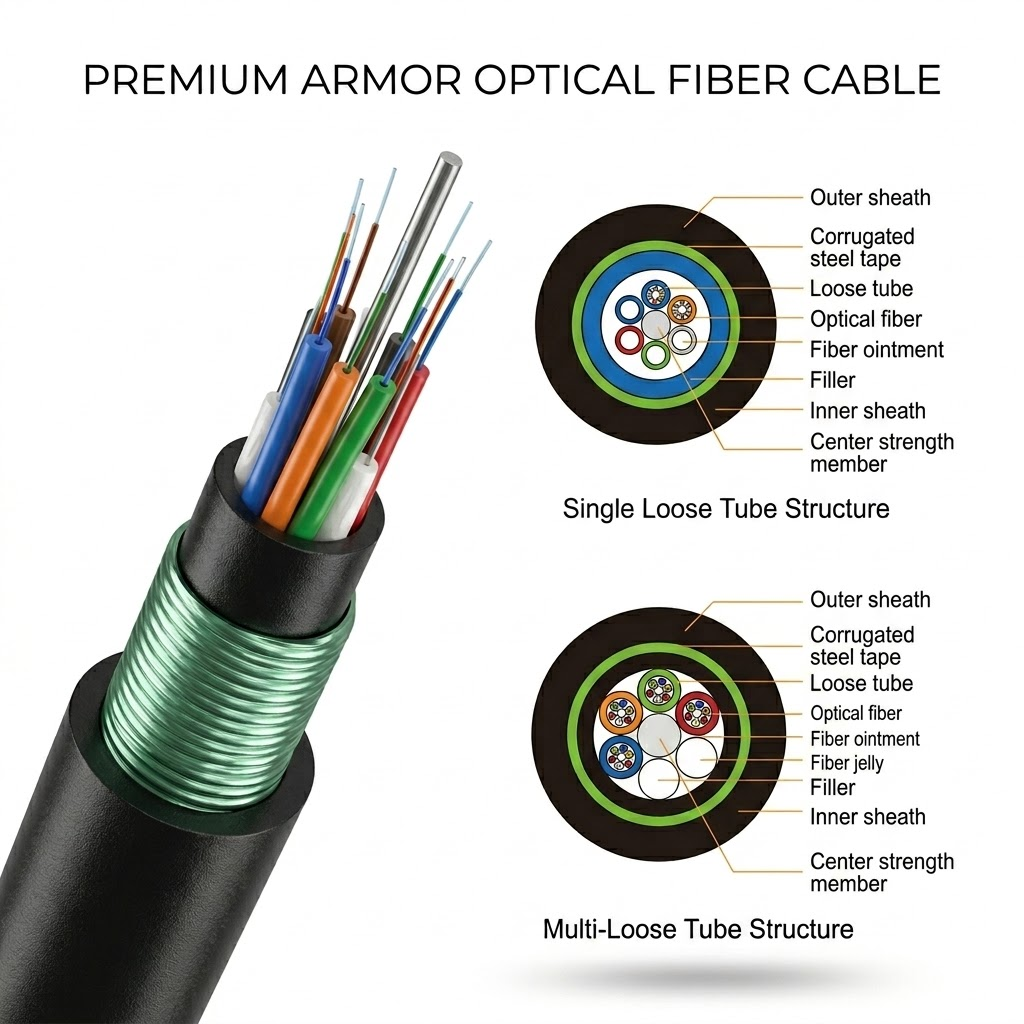

The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes
sheathed with polyethylene(PE)for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes and possible fillers are stranded
around the strength member into a compact and circular cable core.The cable core is filled with the filling compound to protect it from water ingress,over which
a thin PE inner sheath is applied.After the plastic coated steel tape is longitudinally applied over the inner sheath,the cable is sheathed by PE material.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Stranded Loose Tube Armored Cable
Long-distance communication, interoffice communication,buried laying,especially suitable for application with high requirement of anti-moisture,anti-rodent and so on
Premium Outdoor Connectivity & Ultimate Protection
The GYTY53 Armored Fiber Optic Cable is engineered for high-demand communication infrastructures. Whether you are setting up long-distance telecommunications or local interoffice networks, this cable provides the structural integrity needed for direct burial and harsh outdoor conditions. Featuring a robust corrugated steel tape armor, it offers unparalleled protection against moisture, mechanical pressure, and rodents.
Key Features
- Heavy-Duty Armoring: Double-sheathed with a corrugated steel tape layer for superior crush resistance and rodent protection, making it ideal for direct burial without additional conduit.
- High-Modulus Loose Tube Design: Contains $250 \mu m$ fibers protected by a high-modulus plastic tube filled with a water-resistant compound to prevent signal degradation.
- Metallic Strength Member: A solid steel wire center provides high tensile strength, ensuring the cable remains stable during long-span installations.
- Extreme Weather Resilience: Rated for a wide operating temperature range from -40°C to +70°C, ensuring reliable performance in both freezing and scorching environments.
- Superior Moisture Barrier: Utilizing a specialized fiber ointment and filling compound to prevent water ingress, ensuring long-term reliability in damp soil.
Technical Specifications
| Feature | Specification |
| Fiber Type | $250 \mu m$ Multi-core (2 to 288 Cores) |
| Tensile Performance | 1000N (Long-term) / 3000N (Short-term) |
| Crush Resistance | 1000N/100mm (Long-term) / 3000N/100mm (Short-term) |
| Min. Bending Radius | 10D (Static) / 20D (Dynamic) |
| Installation Temp | -20°C to +60°C |
| Operating Temp | -40°C to +70°C |
| Armor Material | Corrugated Steel Tape |
| Sheath Material | High-Density Polyethylene (PE) |
Note: “D” in bending radius represents the actual diameter of the cable.
Versatile Applications
- Direct Burial: No need for extra piping; the armored layer handles soil pressure and moisture effortlessly.
- Long-Distance Comms: Perfect for backbone networks and long-haul telecommunication links.
- Industrial Environments: Resistant to chemical exposure and physical impact.
- Rodent-Prone Areas: The steel tape layer acts as a mechanical barrier against gnawing animals.
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
