Light Armored Fiber Cable – Steel Tape
The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes
sheathed by polyethylene (PE)for cable with high fiber count,locates in the center of core as a metallic strength member.Tubes and possible fillers are stranded
around the strength member into a compact and circular cable core.Corrugated steel tape is applied around the cable core,which is filled with the filling compound
to protect it from water ingress.Then,the cable is sheathed by PE material.
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade
Long-distance communication, interoffice communication，duct laying，non-self supporting aerial
GYTS Stranded Loose Tube Light-Armored Fiber Optic Cable (2-288 Cores)
Reliable High-Speed Connectivity with Corrugated Steel Armor
The GYTS Light-Armored Fiber Optic Cable is the professional choice for robust outdoor and indoor communication networks. Designed with a stranded loose tube structure and reinforced with corrugated steel tape, this cable offers the perfect balance of flexibility and mechanical protection. It is specifically engineered to handle the rigors of duct laying and aerial installations while ensuring your data transmission remains uninterrupted by environmental factors.
Key Product Features
- Corrugated Steel Tape Armor: Features a longitudinal steel tape layer that provides excellent crush resistance and a physical barrier against rodents, ensuring long-term underground and duct durability.
- Superior Waterproofing: The $250\mu m$ fibers are protected within high-modulus plastic tubes filled with water-resistant ointment. The cable core gaps are further packed with a filling compound to prevent any water ingress.
- Metallic Central Strength Member: A high-tensile steel wire core provides the structural backbone, allowing for higher pulling tension during installation without risking fiber breakage.
- Weatherproof PE Sheath: Wrapped in a high-density Polyethylene (PE) jacket, this cable is UV-resistant and built to survive extreme temperatures ranging from -40°C to +70°C.
- High Fiber Density: Capable of housing anywhere from 2 to 288 cores, making it an adaptable solution for everything from small office links to massive municipal backbones.
Technical Specifications
| Feature | Specification |
| Tensile Strength | 600N (Long-term) / 1500N (Short-term) |
| Crush Resistance | 300N/1000mm (Long-term) / 1000N/100mm (Short-term) |
| Bending Radius (Static) | 10 × Diameter (10D) |
| Bending Radius (Dynamic) | 20 × Diameter (20D) |
| Operating Temperature | -40°C to +70°C |
| Installation Temperature | -20°C to +60°C |
| Armor Type | Corrugated Steel Tape (Light-Armored) |
| Outer Jacket | UV-Resistant Polyethylene (PE) |
Professional Applications
- Duct Laying: Optimized for smooth pulling through underground conduit systems.
- Long-Distance Telecommunications: Designed for backbone networks and trunk line installations.
- Interoffice Communication: Ideal for high-capacity data links between servers and buildings.
- Non-Self-Supporting Aerial: Perfect for overhead deployment when used with a messenger wire.

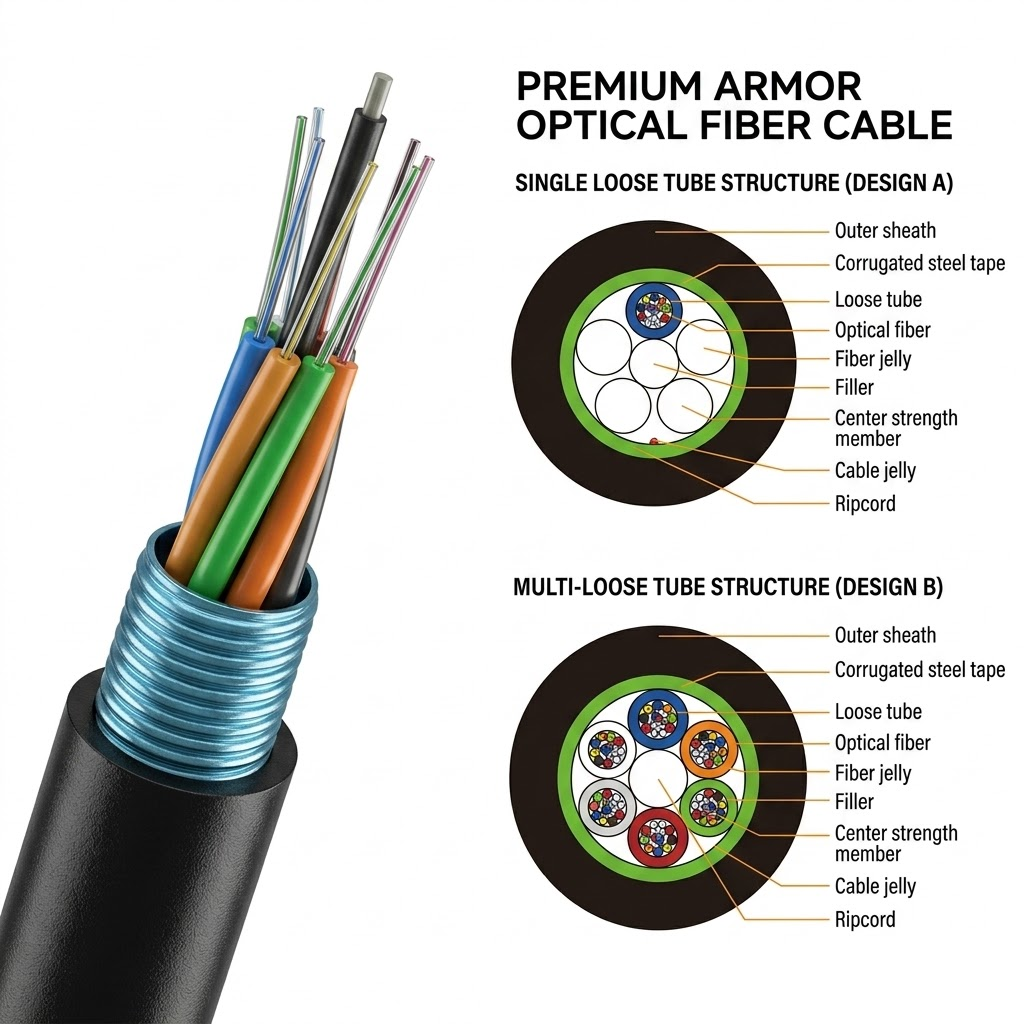

Inside the Build
- Outer Sheath: Rugged PE for environmental protection.
- Corrugated Steel Tape: Provides mechanical protection and moisture barrier.
- Loose Tube: Protects the fibers from stress.
- Fiber Jelly: Secondary water-blocking layer.
- Central Strength Member: Provides tensile integrity.
- Ripcord: Ensures easy stripping for faster termination.
Why GYTS? Unlike non-armored cables, the GYTS series offers the mechanical “toughness” required for industrial environments while remaining lightweight enough for easy handling. It is the ideal middle-ground for projects requiring steel protection without the extreme weight of heavy-duty direct-burial cables.
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
