GJXH Photoelectric Hybrid Cable Manufacturer | LSZH Bow-type Fiber & Copper Composite Cable
The structure of GJXH type photoelectric composite cable is made of single-mode optical fiber, copper wire, and low-smoke, zero halogen,flame retardant polyolefin
material. It is composed of optical unit, electrical unit and sheath, and the shape is "bow-type cable"
| Customization |
OEM/ODM Services Available Logo Print, Jacket Color, Length, Connectors |
| Packaging | Plywood Reel / Pull Box / Palletizing |
| Application | Data Center / Industrial / Telecommunication |
Premium OS2 Grade

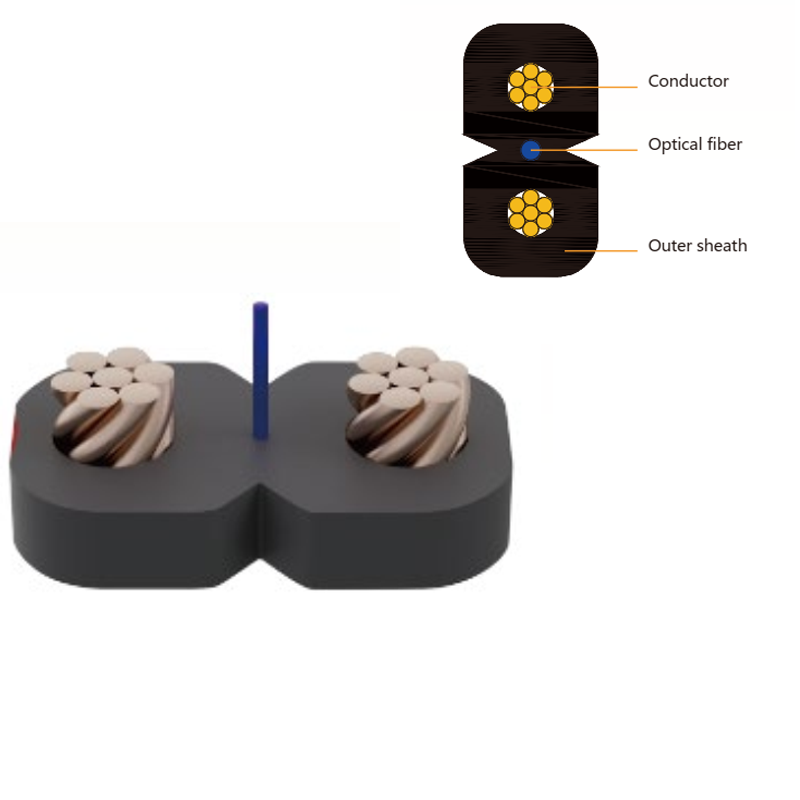

The GJXH type Photoelectric hybrid cable
Product Description
The structure of GJXH type photoelectric composite cable is made of single – mode optical fiber, copper wire, and low – smoke, zero – halogen, flame – retardant polyolefin material. It is composed of optical unit, electrical unit and sheath, and the shape is “bow – type cable”.
Technical Parameters (Ref)
| Product Specifications | Reference Outer Diameter (mm) | Reference Weight (kg/km) | Tensile Strength (N) Long/Short Term | Crush Resistance (N/100mm) Long/Short Term |
|---|---|---|---|---|
| GJXH – 18b3 + 2× (10×0.20mm) | (3.2 ± 0.2) × (1.7 ± 0.1) | 11 | 60 / 120 | 500 / 1000 |
Electrical properties of the insulators
| Conductor Specification (mm) | Max DC resistance of a single conductor at 20℃ (Ω/km) | 20℃ Insulation resistance (MΩ·km) between each insulated wire and other metals connected inside the cable | Insulation and withstand voltage strength between conductors (kV, DC 1min) |
|---|---|---|---|
| 10×0.20 | 57.8 | >500 | 2 |
Custom Manufacturing Available
Custom jacket color, logo printing, and specific lengths.
Technical Specs
Technical Specifications
01
Are you a direct manufacturer?
Yes. We have been a specialized manufacturer in the fiber optic and cabling field since 2009. With a dedicated team of over 500 professionals, we manage the entire production vertical to ensure competitive pricing and quality control.
02
Compliance & Quality Certifications?
Our facility and products are fully certified with ISO9001, SGS, UL, CPR, CE, and RoHS. All cables undergo rigorous testing (including Fluke tests where applicable) to meet international telecommunication standards.
03
MOQ & Small Order Support?
We offer Flexible MOQ to support new projects and growing businesses. Whether you need a small trial batch or high-volume procurement, we provide cost-effective quotes based on your specific quantity requirements.
04
OEM/ODM & Custom Branding?
We provide full OEM/ODM services, including custom jacket printing, logo placement, and specialized packaging. Samples can be prepared within 3-5 days and shipped via DHL/FedEx/UPS for your technical evaluation.
05
Lead Time & Export Packaging?
Standard production lead time is 10-15 working days after payment/sample confirmation. For export, we use reinforced packaging (plywood reels or Easy-Pull boxes) to ensure product integrity during sea or air transit.
06
What is your Warranty Period?
We stand behind our quality with industry-leading warranties: 10 years for Lan cables and 25 years for Fiber Optic cables. We are committed to long-term reliability in your network infrastructure.
