GYDTA Stranded Loose Tube Non-Armored Ribbon Fiber Cable (48-432 Cores)

High-Density Connectivity for Large-Scale Infrastructure

The GYDTA Ribbon Fiber Cable is designed for high-capacity telecommunication networks that require massive fiber counts in a space-efficient design. By utilizing fiber ribbons (4, 6, 8, or 12 fibers per ribbon) rather than individual strands, this cable allows for rapid mass fusion splicing and high-density connectivity within underground ducts and aerial environments.

---

Key Product Features

• High-Density Ribbon Design: Contains fiber ribbons (4 to 12 fibers each) housed in high-modulus loose tubes, significantly increasing fiber count within a smaller cable diameter.
• Superior Moisture Barrier: Features an aluminum tape moisture barrier and water-resistant filling compounds to prevent signal attenuation caused by water ingress.
• Metallic Strength Member: A central steel wire provides excellent tensile strength, ensuring the cable remains stable during long-span installations.
• Extreme Weather Resilience: Engineered to perform in harsh environments with an operating temperature range of -40°C to +70°C.
• Durable PE Sheath: Encased in a rugged, UV-resistant Polyethylene (PE) outer jacket optimized for outdoor durability.

---

Technical Specifications

Specification	Performance Detail
Fiber Count	48 to 432 Cores
Fiber Arrangement	4, 6, 8, or 12-Fiber Ribbons
Tensile Performance	600N (Long-term) / 1500N (Short-term)
Crush Resistance	300N/1000mm (Long-term) / 1000N/100mm (Short-term)
Min. Bending Radius	Static: 12.5D / Dynamic: 20D
Operating Temperature	-40°# GYDTA Stranded Loose Tube Non-Armored Ribbon Fiber Cable (48-432 Cores)

High-Density Connectivity with Optimized Ribbon Technology

The GYDTA Ribbon Fiber Cable is the ultimate solution for high-capacity data transmission in space-constrained environments. By utilizing fiber ribbons (available in 4, 6, 8, or 12 fibers per ribbon), this cable packs an incredible core count into a manageable, non-armored design. It is specifically engineered for efficient duct laying and non-self-supporting aerial installations where high-speed, high-density connectivity is paramount.

---

Key Product Features

• High-Density Ribbon Design: Contains 4, 6, 8, or 12-core fiber ribbons housed in high-modulus plastic loose tubes. This design allows for massive fiber counts (up to 432 cores) while simplifying the splicing process.
• Aluminum Tape Moisture Barrier: Features a longitudinal aluminum wire/tape wrap around the cable core to provide a superior barrier against moisture and environmental humidity.
• Superior Waterproofing: Each loose tube is filled with water-resistant fiber jelly, and the entire cable core is packed with filling compound to prevent water ingress and maintain long-term signal stability.
• Solid Metallic Strength Member: A high-tensile steel wire core provides the necessary structural backbone for stable installation and long-span durability.
• Durable UV-Resistant Sheath: Encased in a rugged Polyethylene (PE) outer jacket that withstands extreme outdoor temperatures and UV exposure.

---

Technical Specifications

Feature	Specification Details
Fiber Count Range	48 to 432 Cores
Ribbon Types	4, 6, 8, 12 Fibers per Ribbon
Tensile Performance	600N (Long-term) / 1500N (Short-term)
Crush Resistance	300N/1000mm (Long-term) / 1000N/100mm (Short-term)
Min. Bending Radius	Static: 12.5D / Dynamic: 20D
Operating Temp	-40°C to +70°C
Installation Temp	-20°C to +60°C

---

Professional Applications

• High-Capacity Duct Laying: Designed for high-speed pulls through underground conduit systems in urban and industrial areas.
• Non-Self Supporting Aerial: Perfect for overhead data trunk lines when supported by messenger hardware.
• Data Center Interconnects: Provides the massive fiber density required for modern server farm backbones.
• Municipal Telecommunications: Ideal for large-scale fiber-to-the-city (FTTC) or backbone infrastructure projects.

---

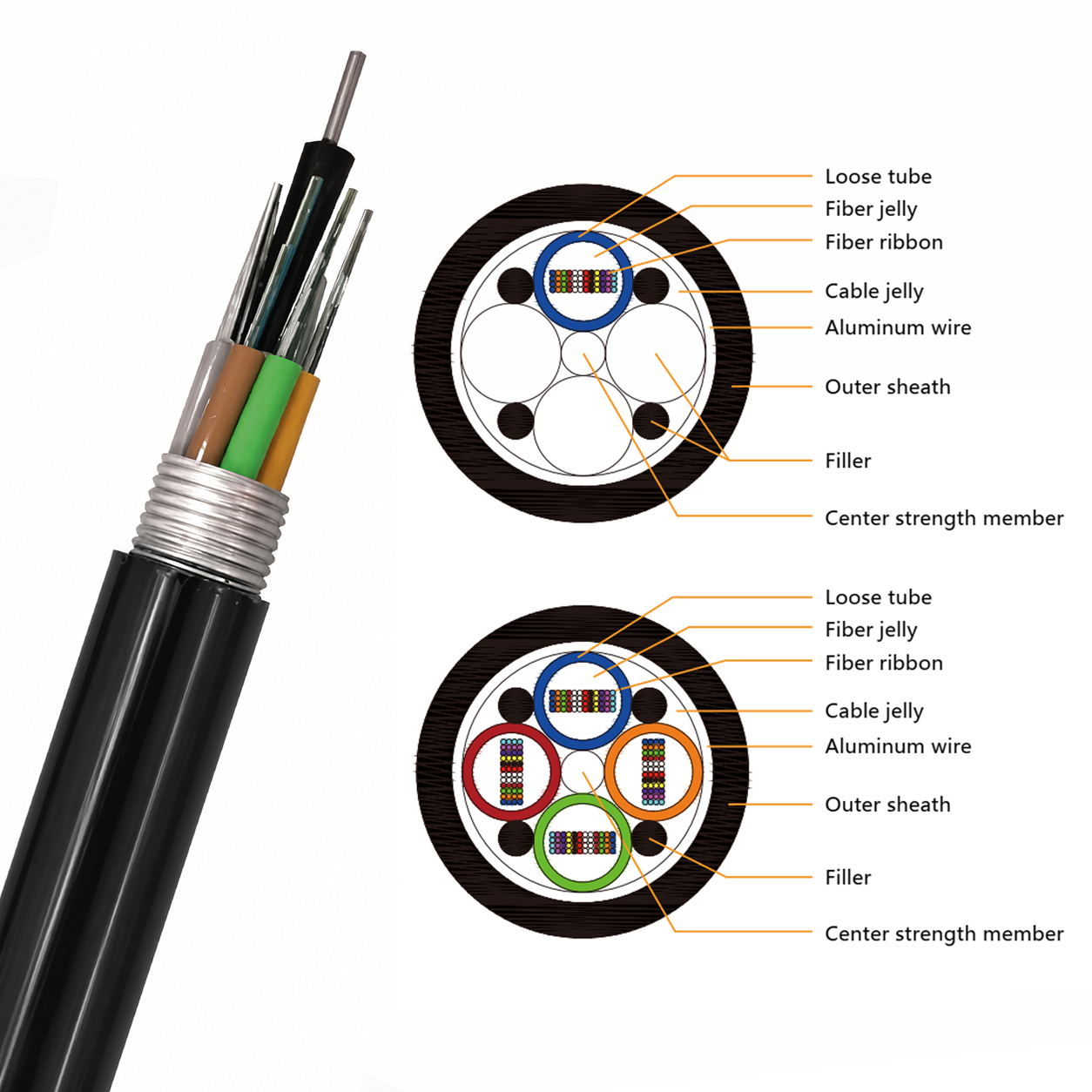

Cable Structure Breakdown

1. Outer Sheath: Durable PE protection.
2. Aluminum Wire/Tape: Longitudinal moisture-proof layer.
3. Loose Tube: Protects the ribbon cores from mechanical stress.
4. Fiber Ribbon: High-density 4-12 fiber ribbons.
5. Filling Compound: Multi-stage water-blocking jelly.
6. Central Strength Member: Metallic steel wire for high tensile integrity.

Note: “D” in the technical chart refers to the actual outer diameter of the cable. Adhering to the minimum bending radius ensures the integrity of the high-density fiber ribbons.
